Wiring Diagrams

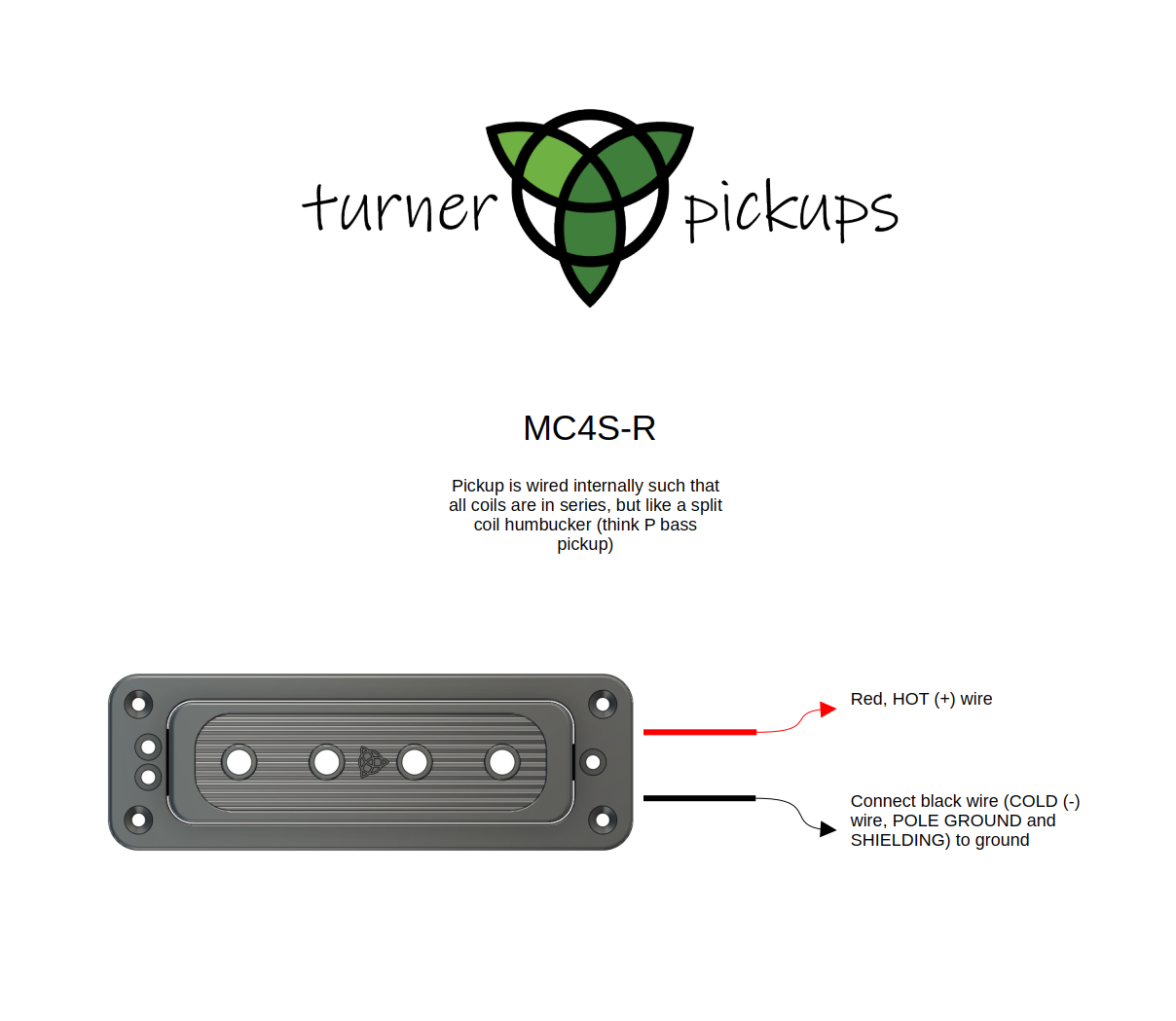

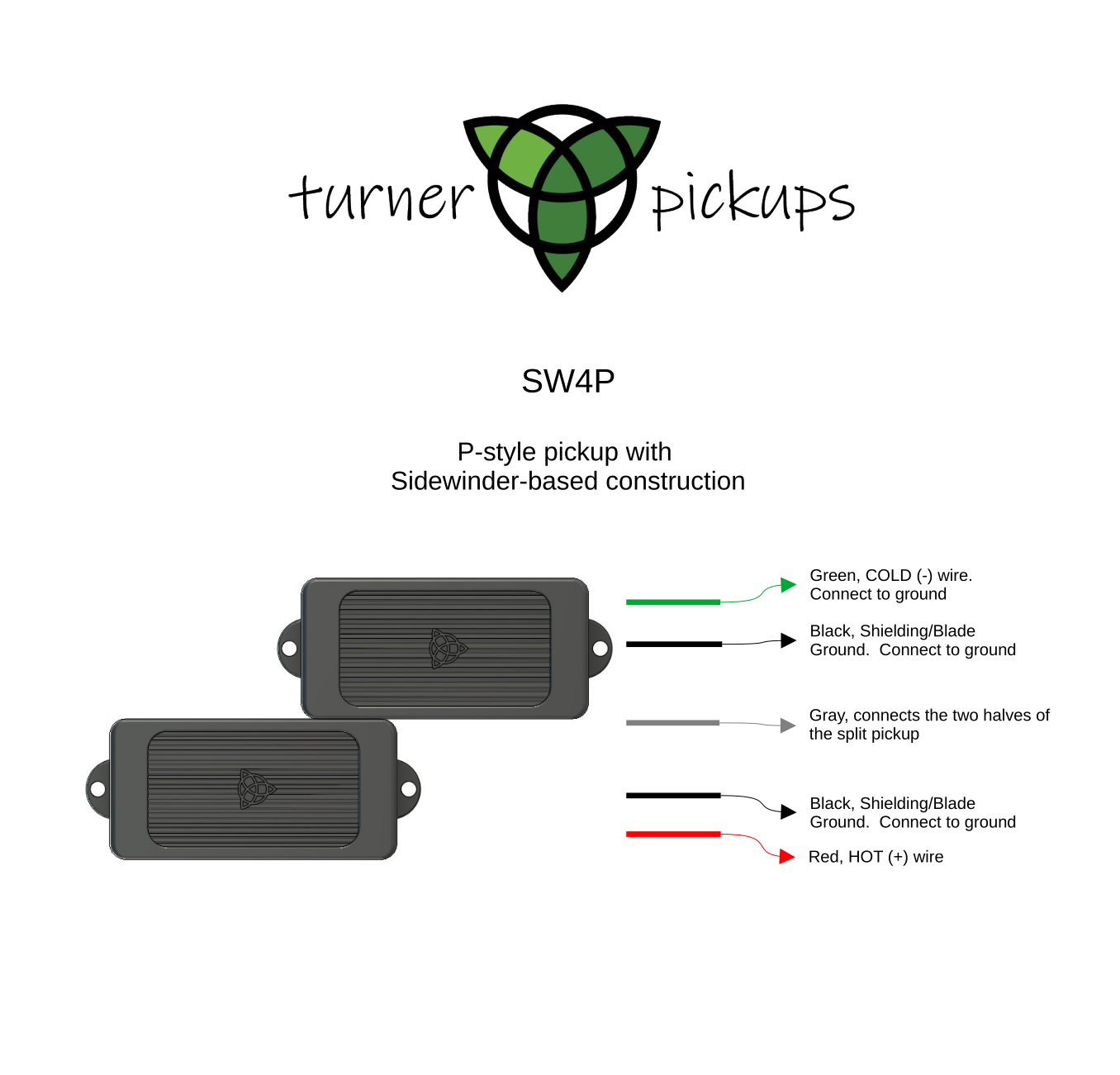

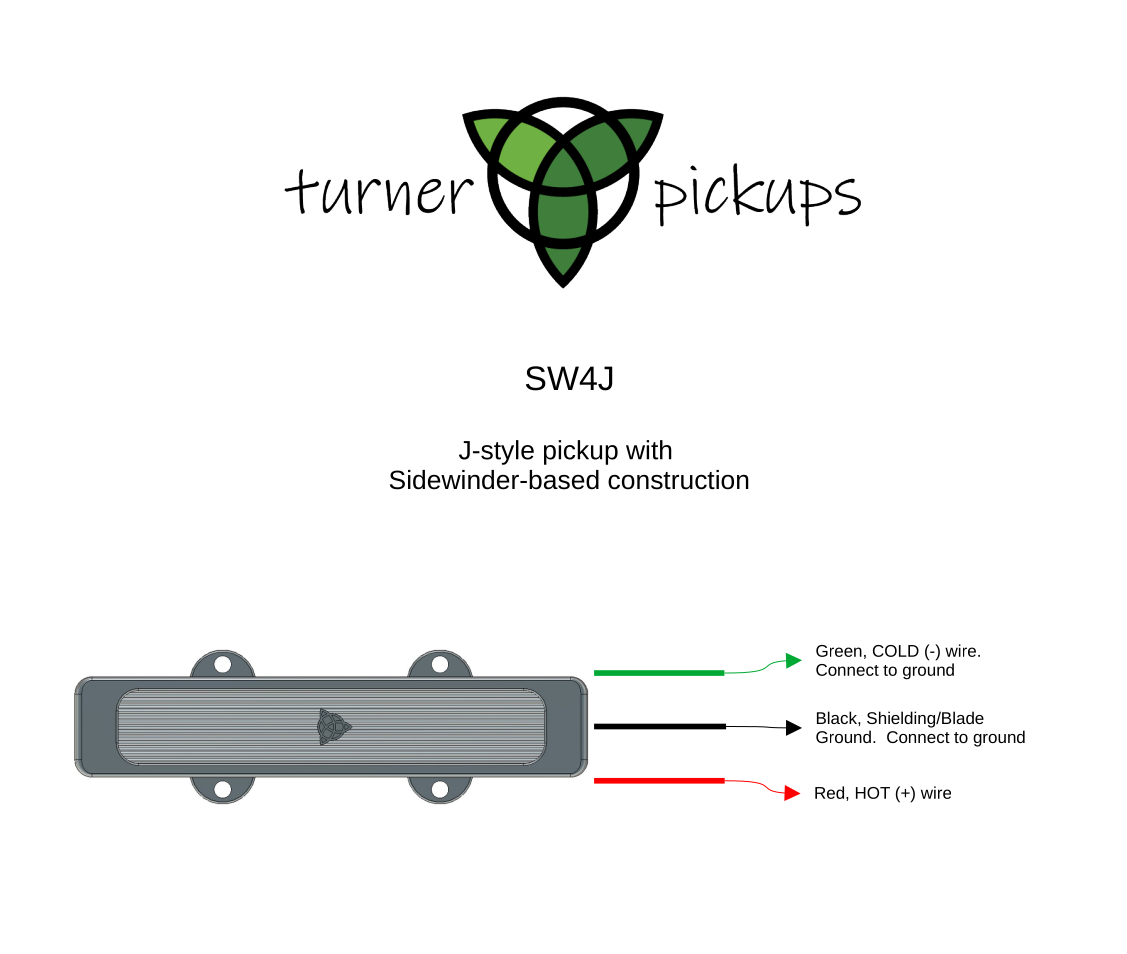

4 String Pickups

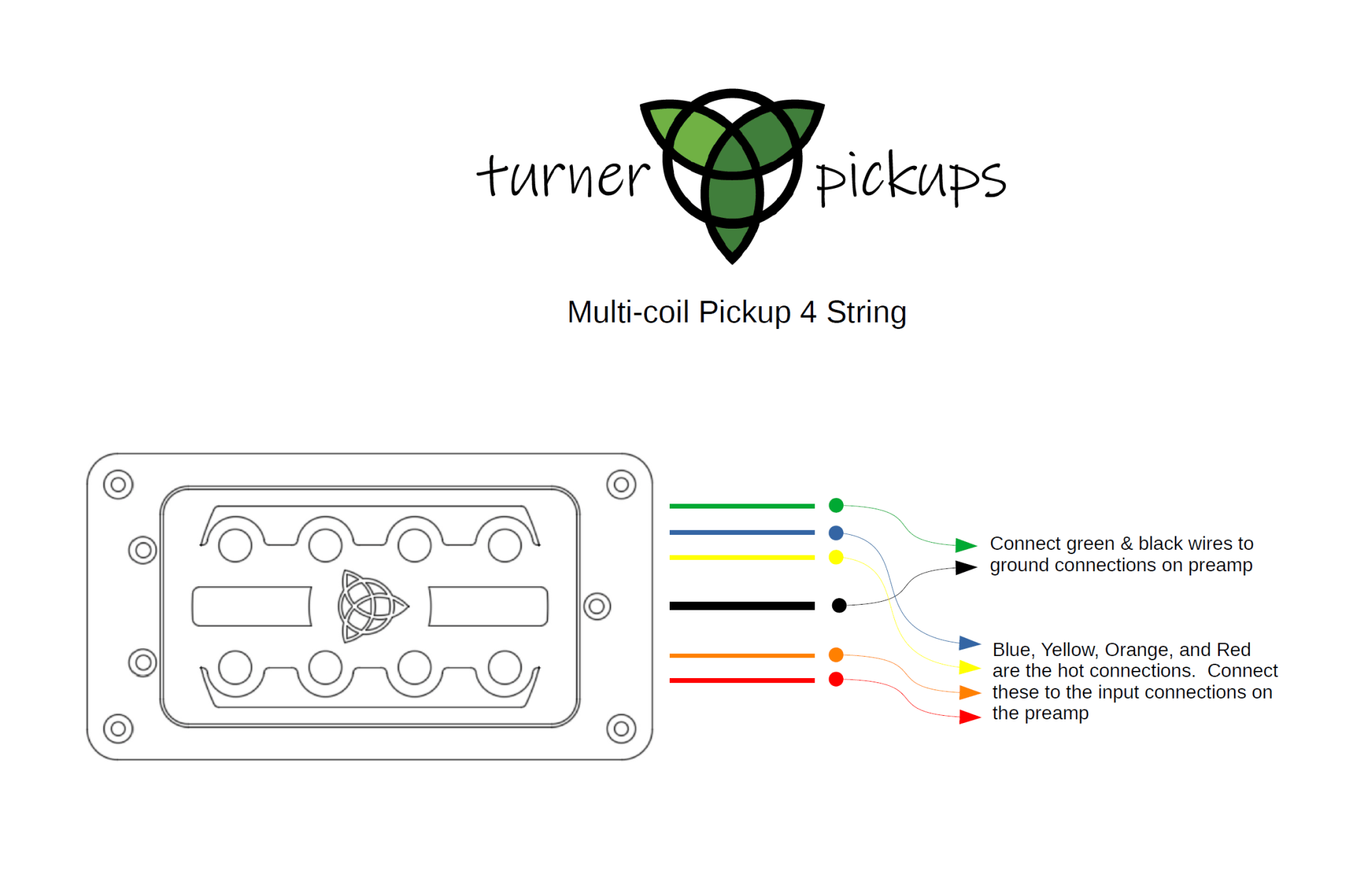

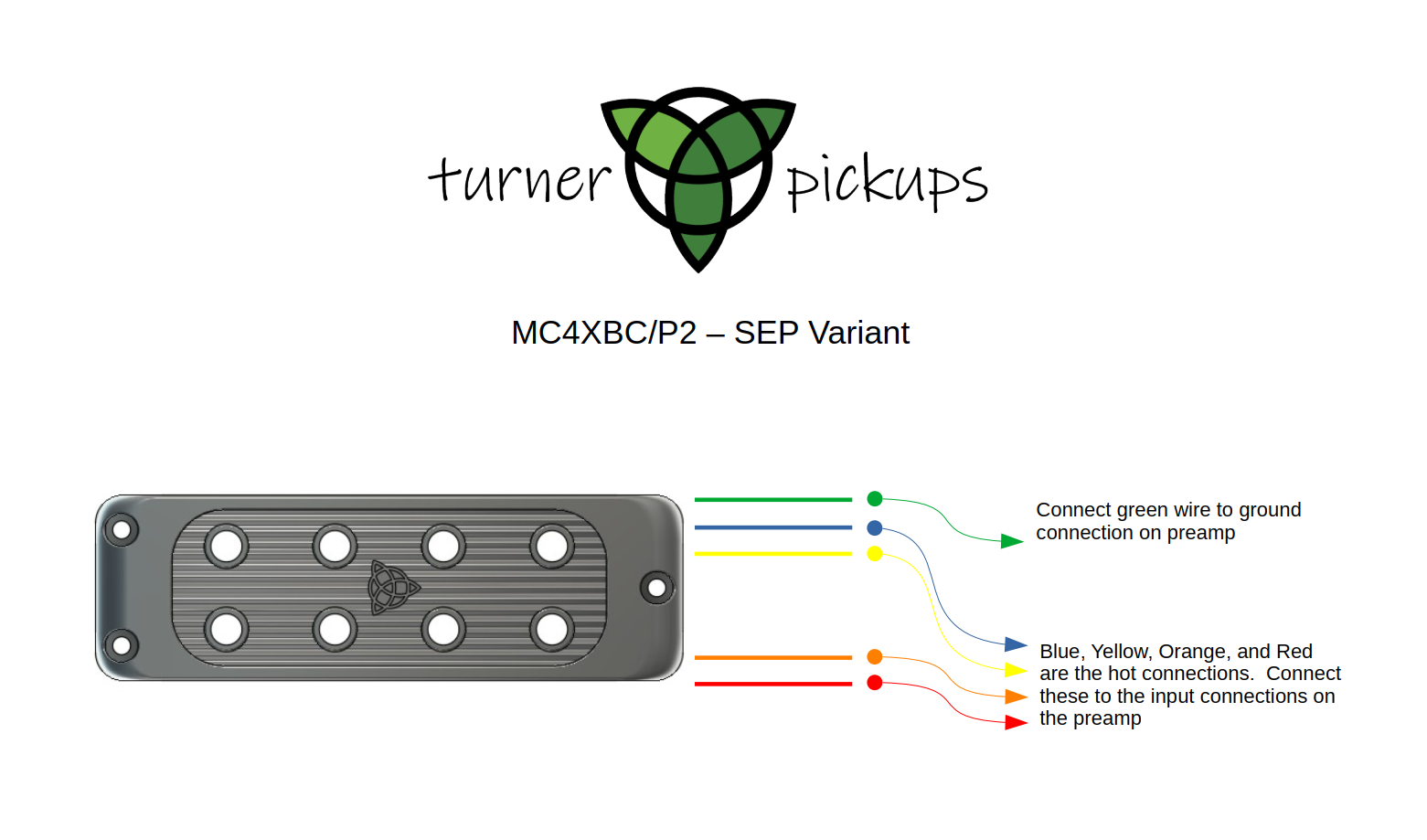

MC4X - RSEP/SEP Variants
Multicoil Pickups w/ Output for Each Coil Pair Under a String
(applies to all cover styles)

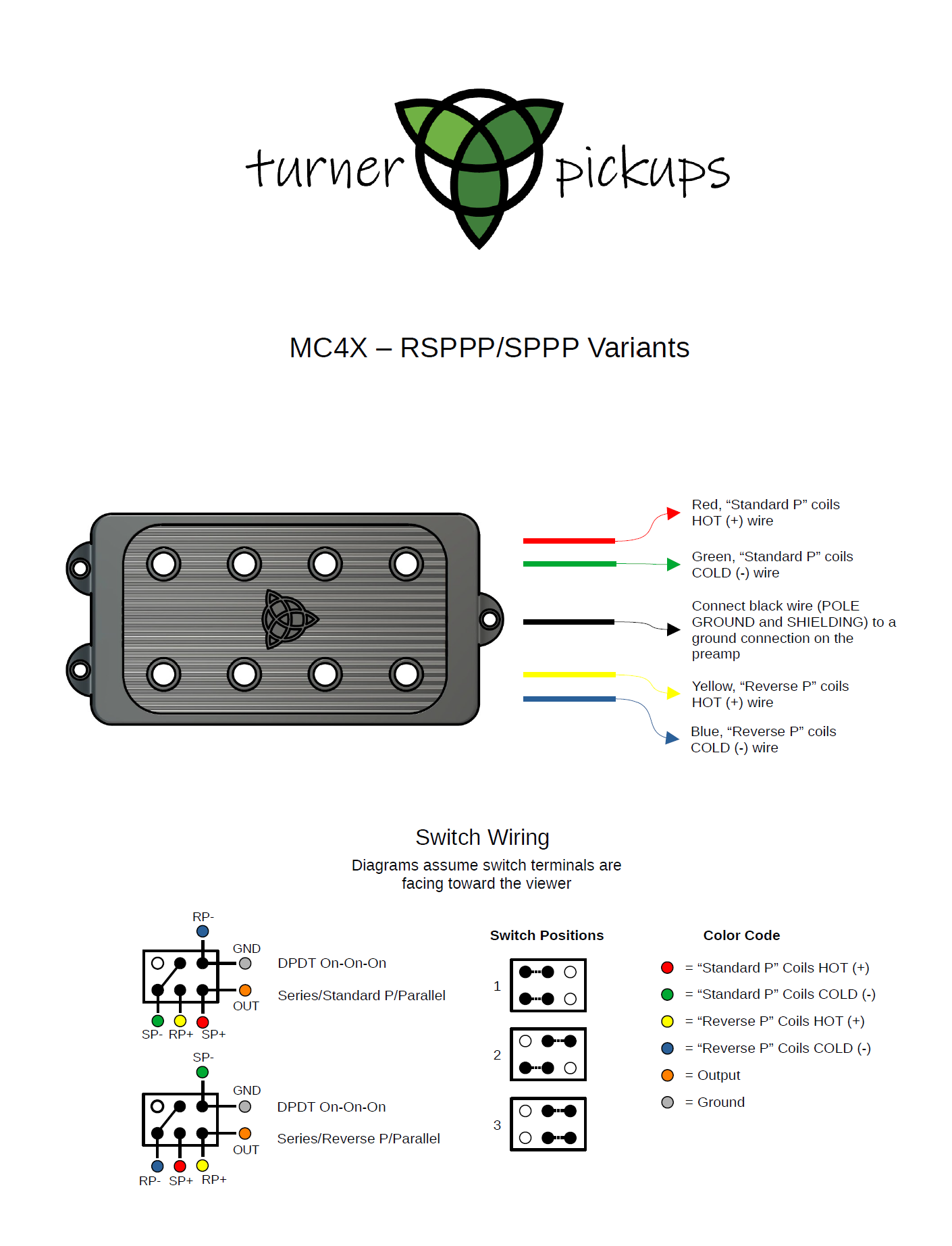

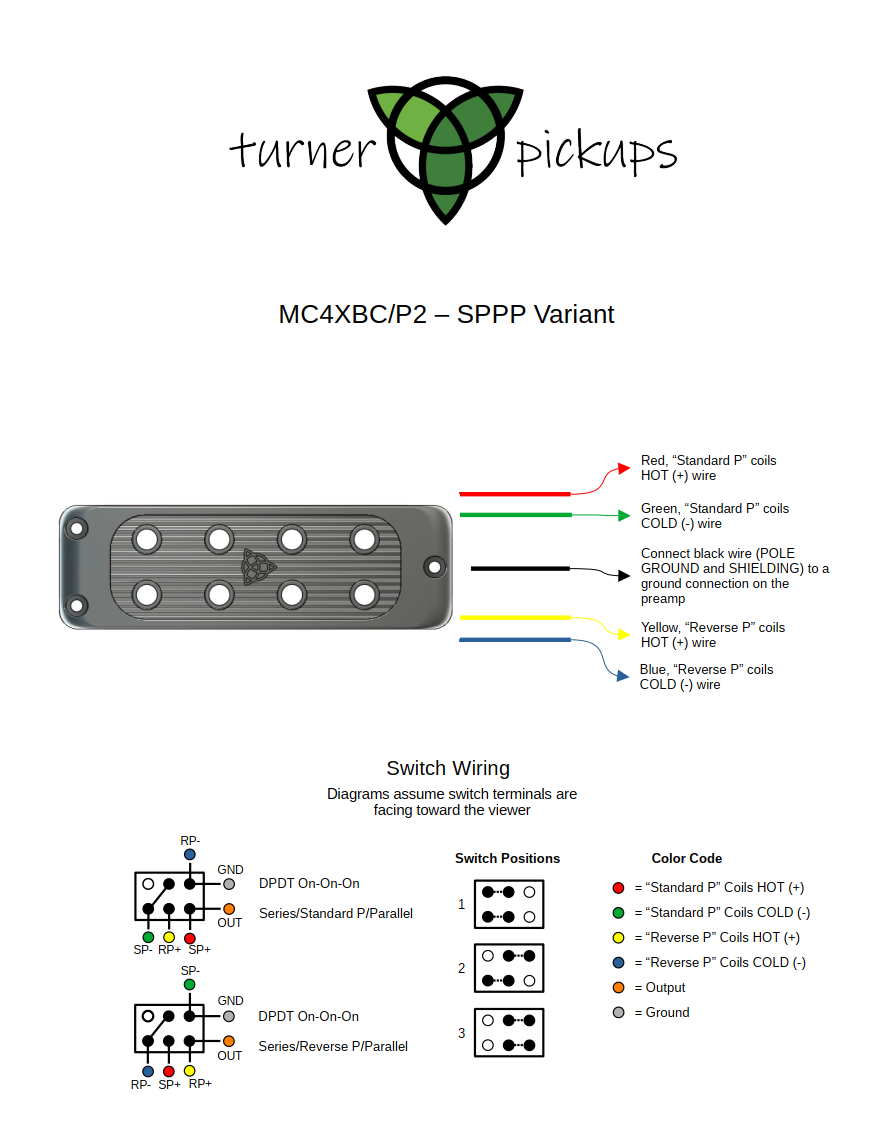

MC4X - RSPPP/SPPP Variants
Multicoil Pickups w/ Two Leads for Each "P" Pickup Arrangement
"Standard" P = Neck-Side E, A Coils w/ Bridge-Side D, G Coils |
"Reverse" P = Bridge-Side E, A Coils w/ Neck-Side D, G Coils
(applies to all cover styles)

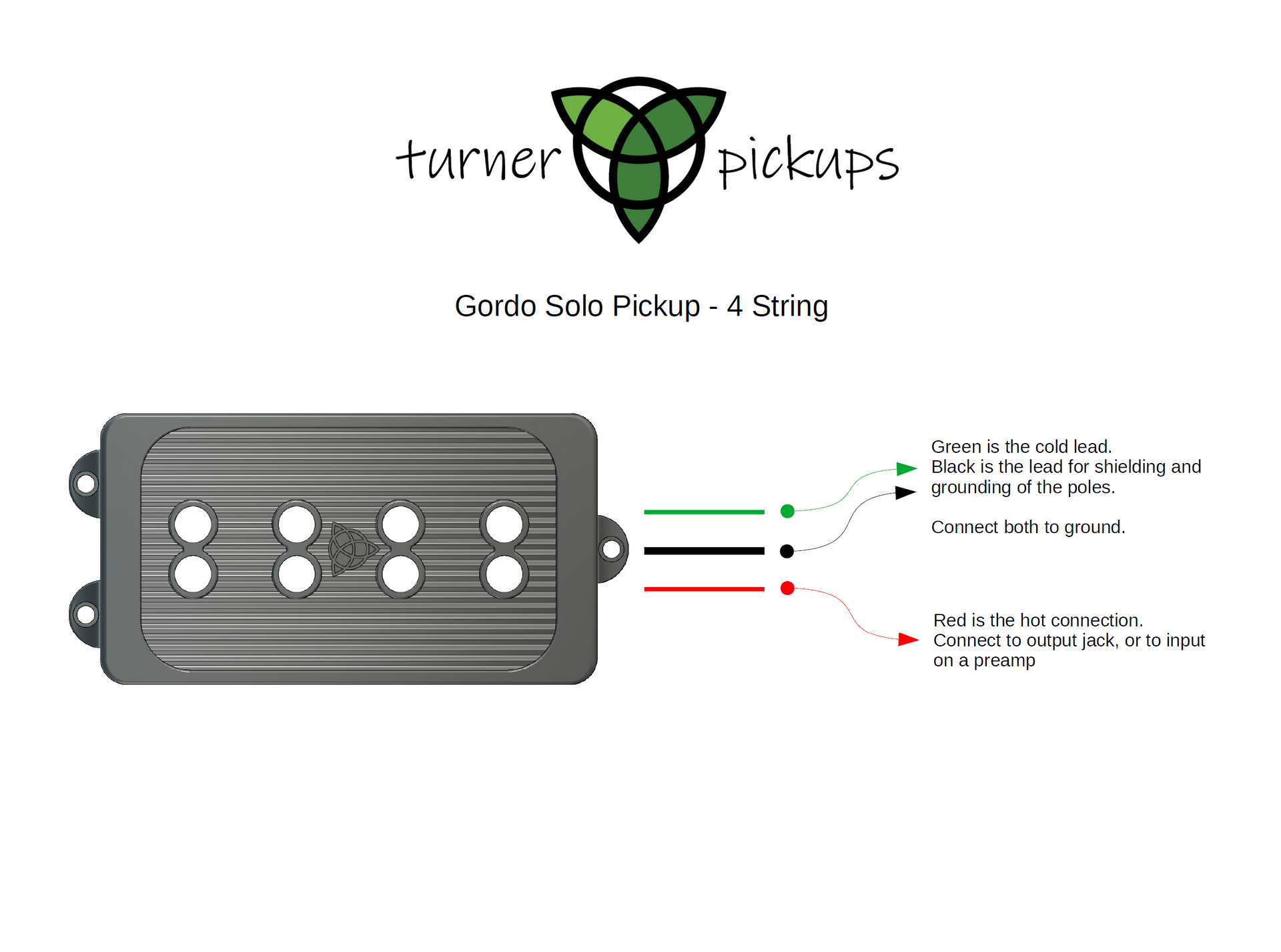

GS4 (Gordo Solo)

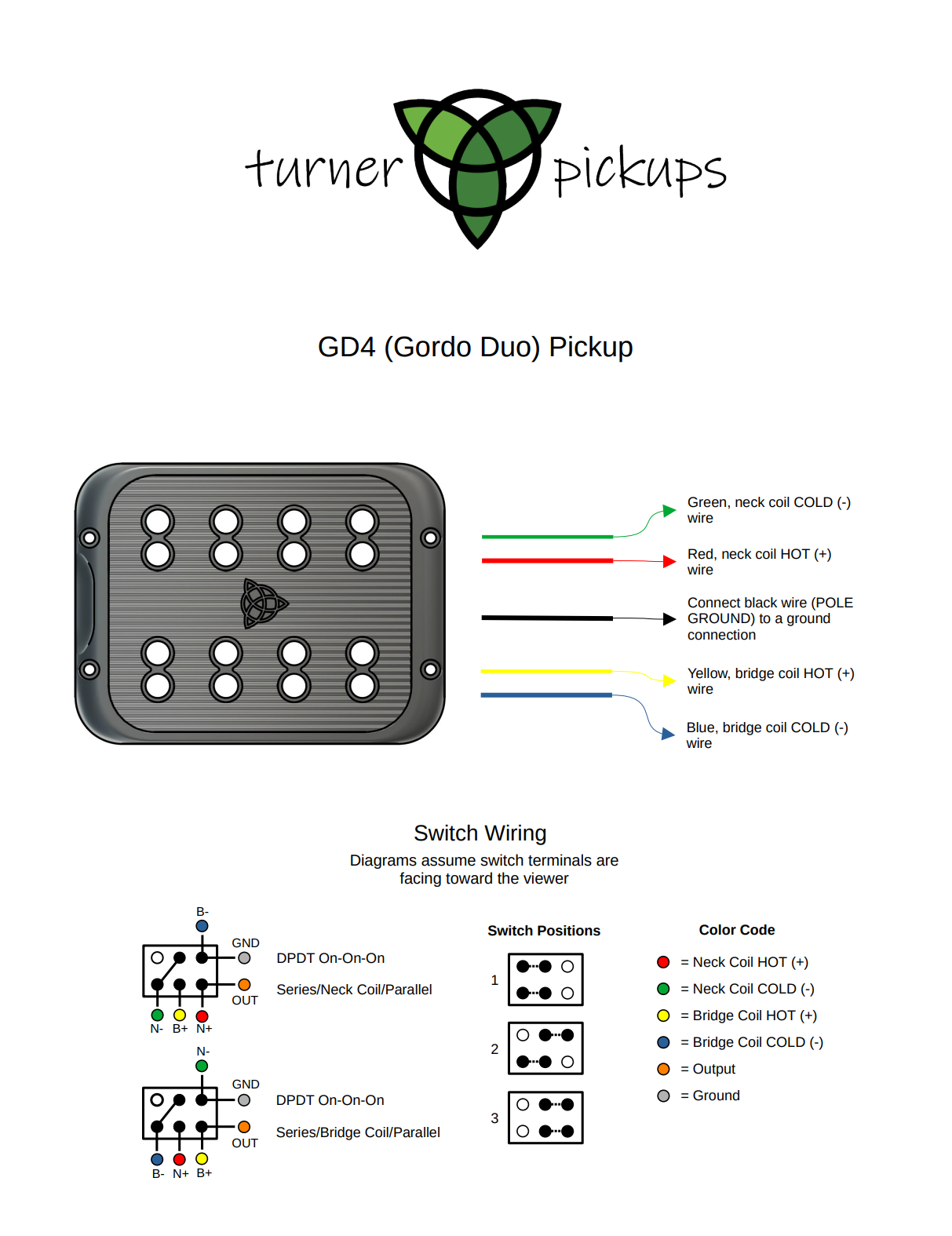

GD4 (Gordo Duo)

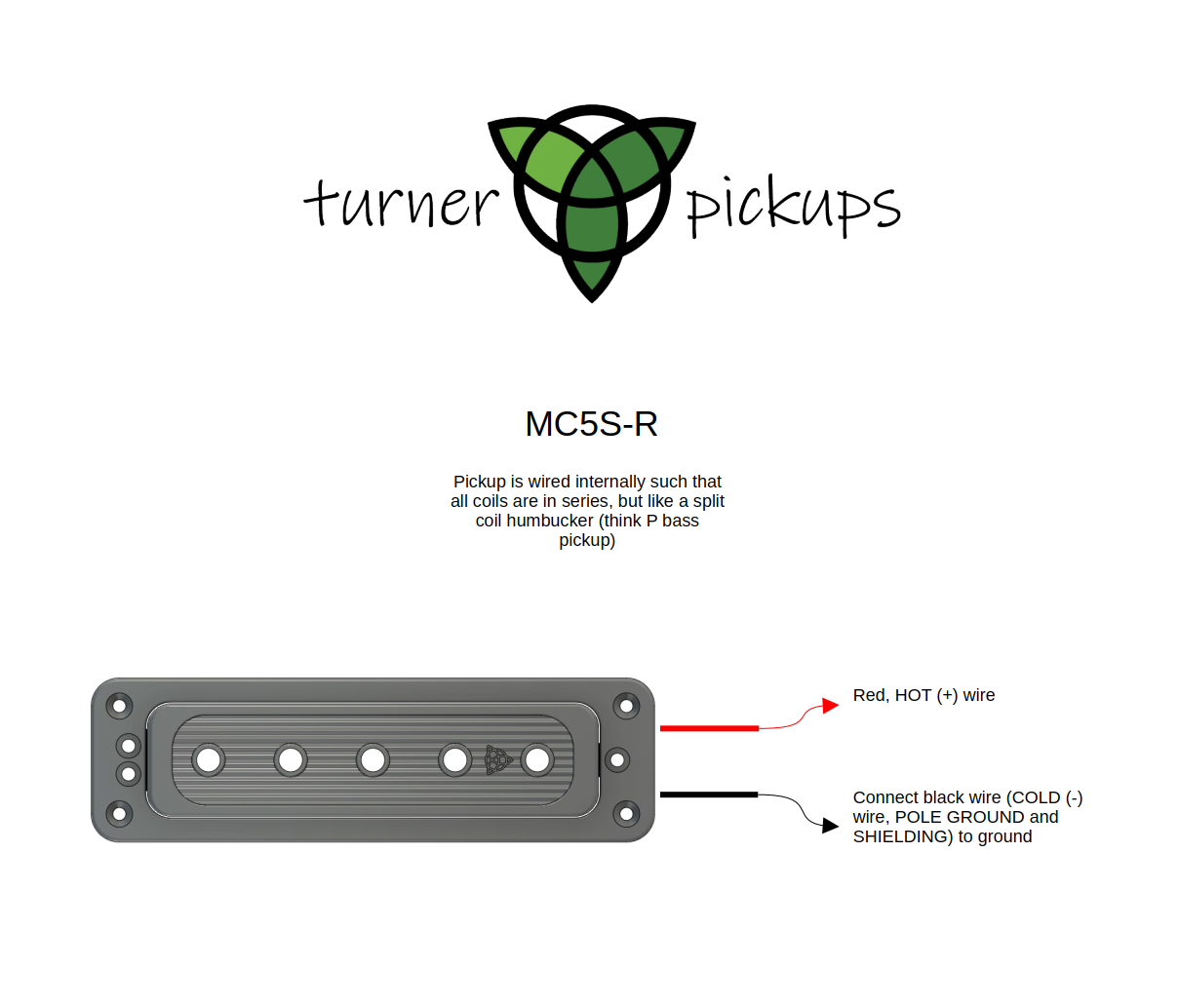

5 String Pickups

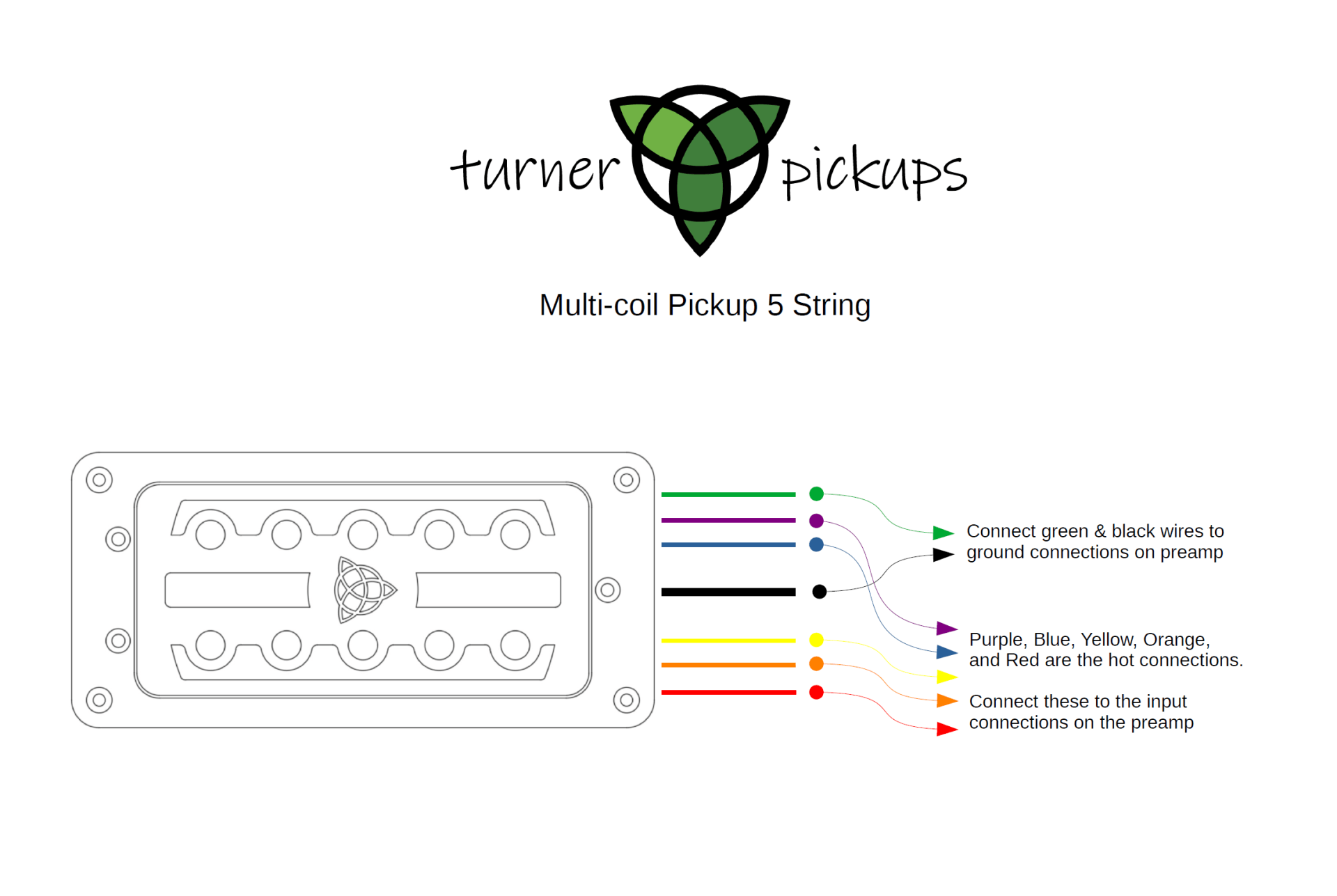

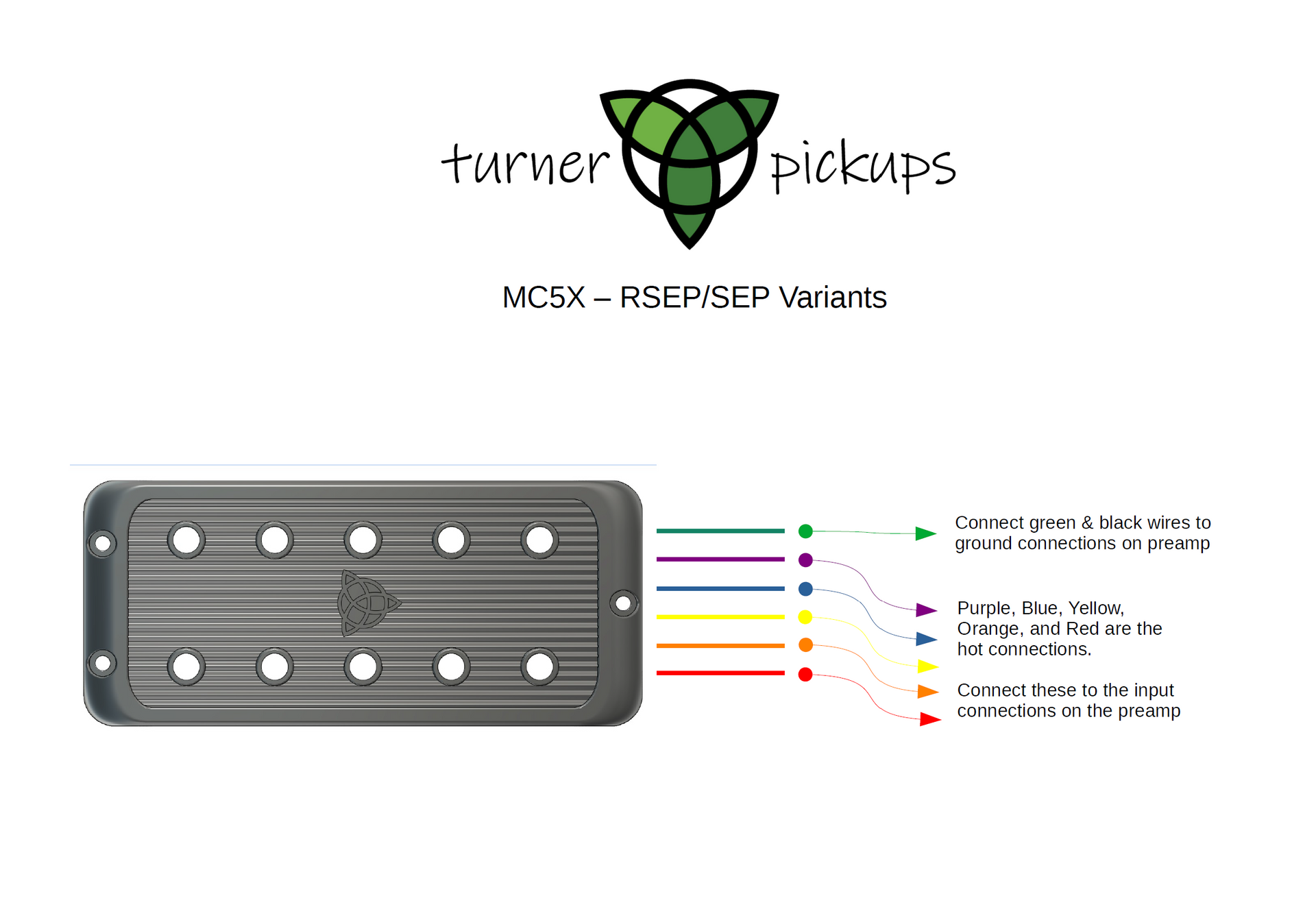

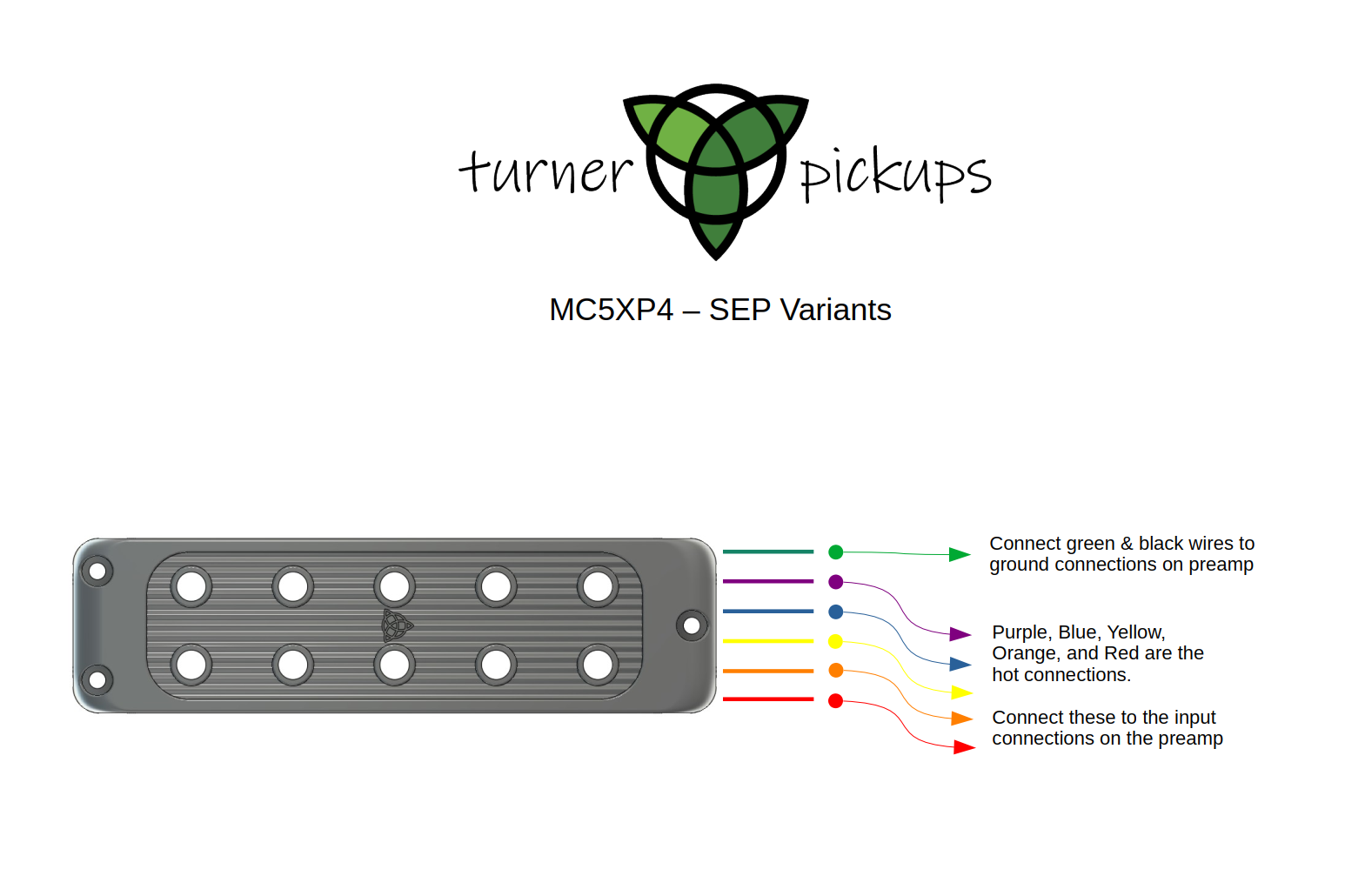

MC5X - RSEP/SEP Variants
Multicoil Pickups w/ Output for Each Coil Pair Under a String
(applies to all cover styles)

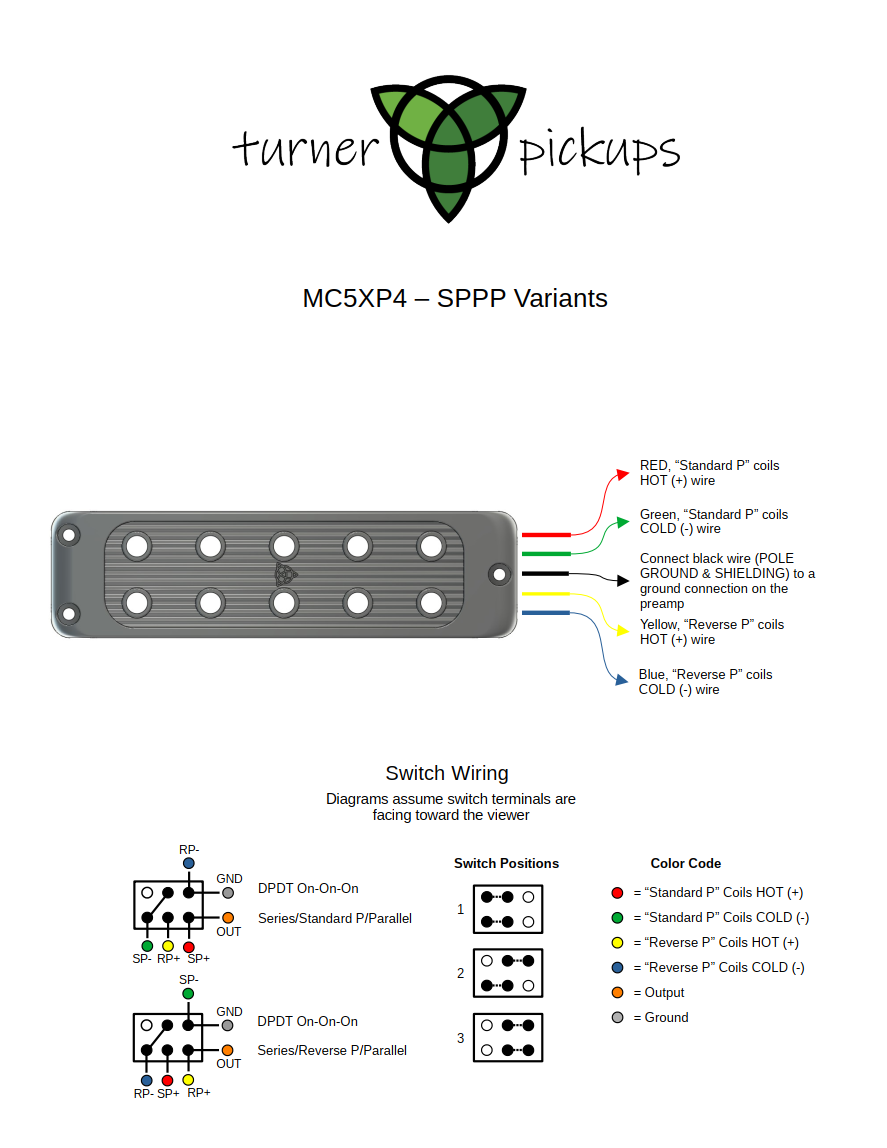

MC5X - RSPPP/SPPP Variants
Multicoil Pickups w/ Two Leads for Each "P" Pickup Arrangement
"Standard" P = Neck-Side B, E, A Coils w/ Bridge-Side D, G Coils |
"Reverse" P = Bridge-Side B, E, A Coils w/ Neck-Side D, G Coils
(applies to all cover styles)

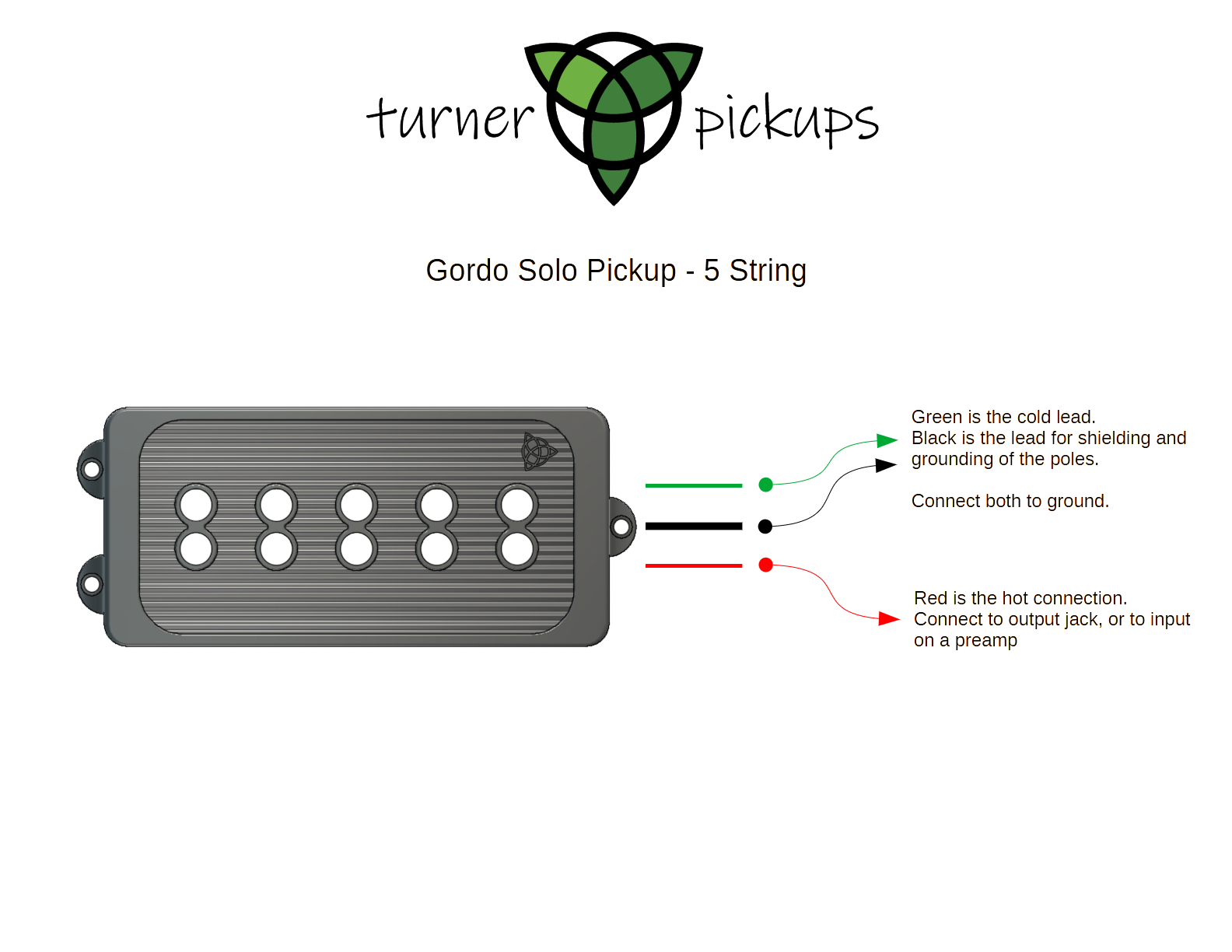

GS5 (Gordo Solo)
Accessories
No-Solder 3-Way Switch
For Multicoil "SPPP" Variants and/or Gordo Duo (or any humbucker pickup with 2 leads for each coil)
A super easy way to add the following wiring options for these pickups:
Series / "Standard P" / Parallel OR Series / "Reverse P" / Parallel (SPPP Variants)
OR
Series / Neck Coil Only / Parallel OR Series / Bridge Coil Only / Parallel (Gordo Duo, humbuckers)
Hooking things up is as simple as matching the pickup lead colors to
the colored dots on the screw terminals (see below).

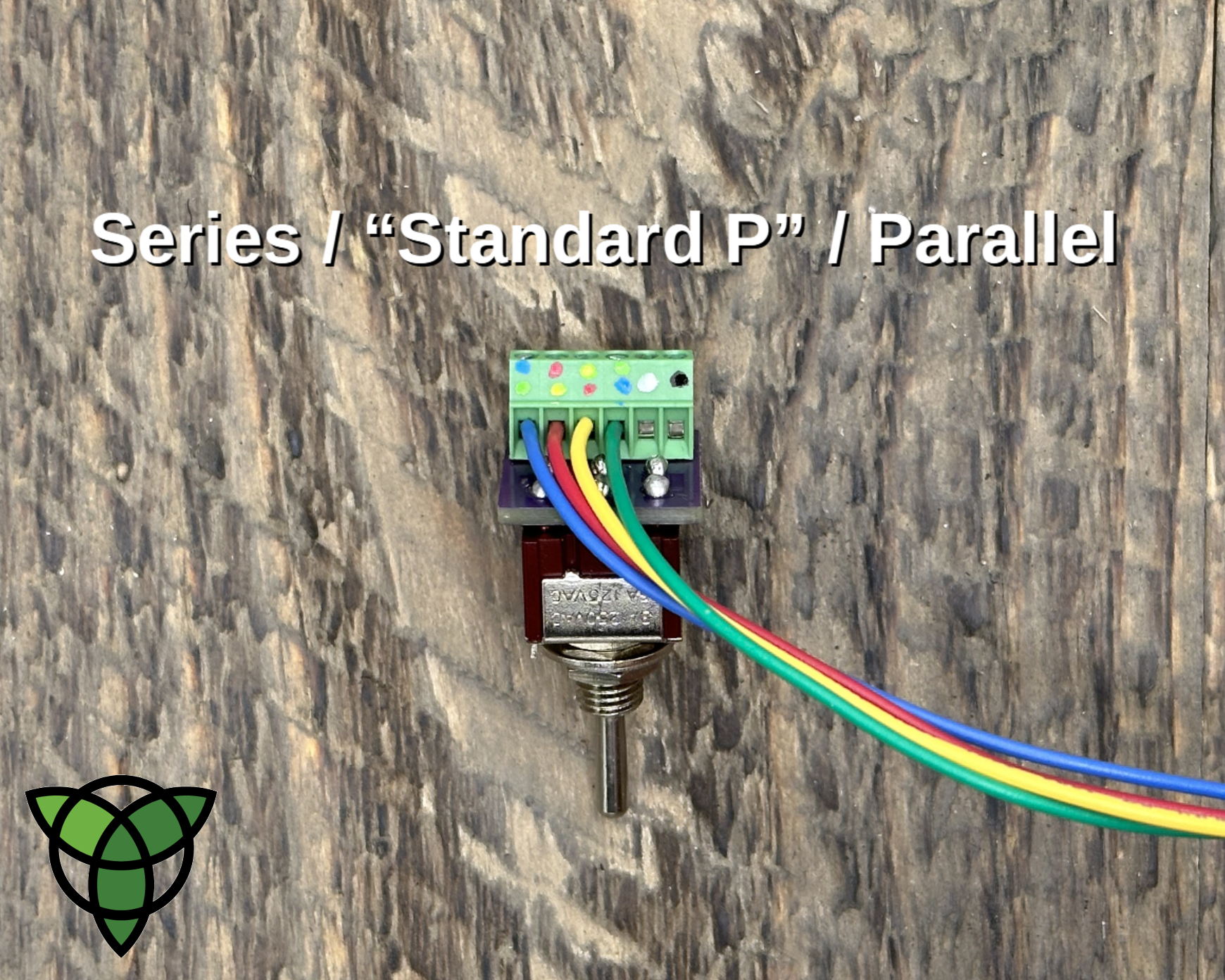

Use the top row of colors for the Series/"Standard P"/Parallel or Series/Neck Coil/Parallel option.

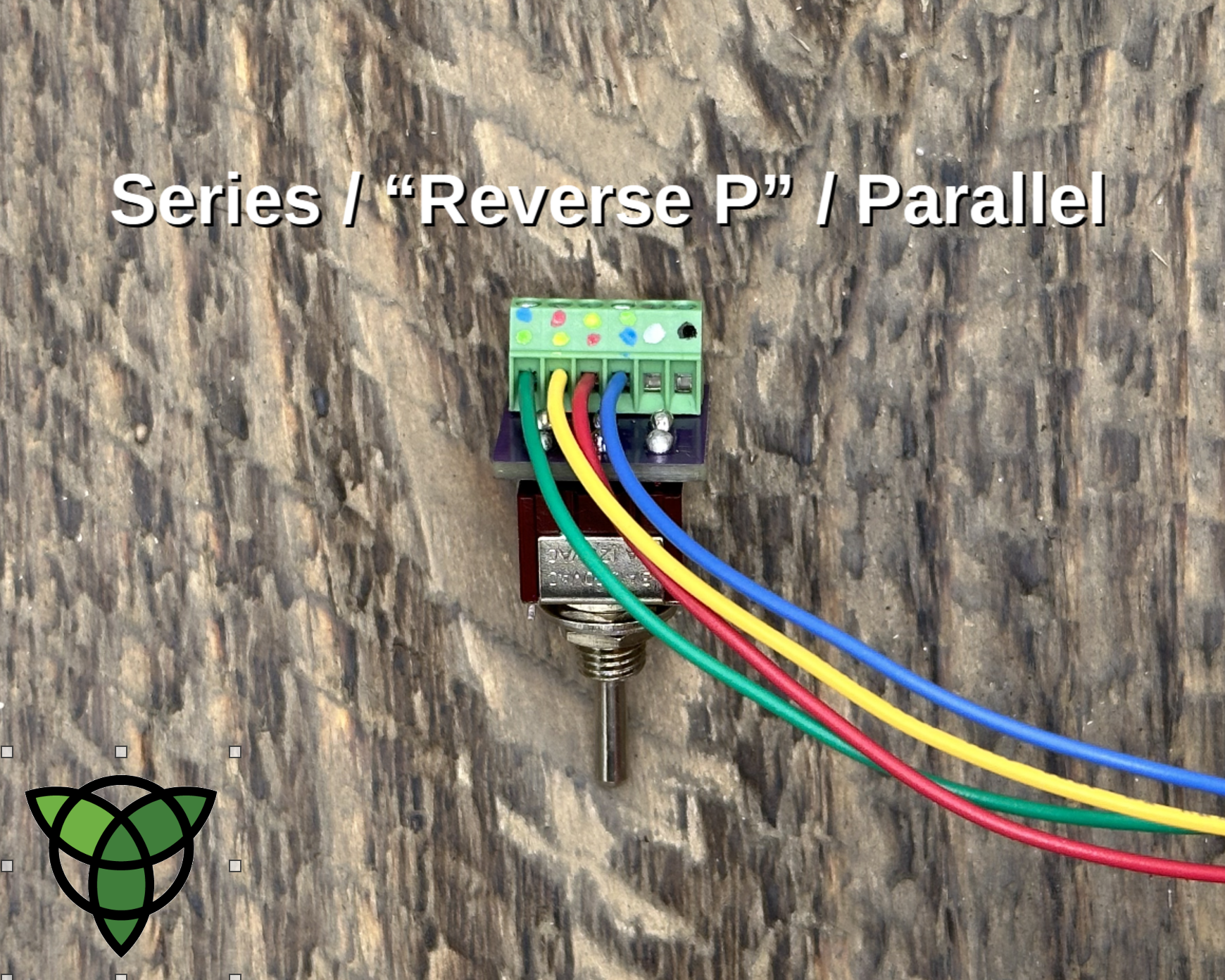

Use the bottom row of colors for the Series/"Reverse P"/Parallel or Series/Bridge Coil/Parallel option.
In both cases, the White terminal is the output, and the Black terminal connects to ground.
No-Solder 4-Way Rotary Switch
For Multicoil "SPPP" Variants and/or Gordo Duo (or any humbucker pickup with 2 leads for each coil)
A super easy way to add the following wiring options for these pickups:
"Standard P" / Parallel / Series / "Reverse P" (SPPP Variants)
OR
Neck Coil / Parallel / Series / Bridge Coil (Gordo Duo, humbuckers)
OR, WITH 2 PICKUPS
Neck Pickup Only / Bridge & Neck Parallel / Bridge & Neck Series / Bridge Pickup Only
Hooking things up is as simple as matching the pickup lead colors to
the colored dots on the screw terminals (see below).
The white terminal is the output, and the black terminal connects to ground.
Wiring Diagrams for Older Pickup Versions
MC4/5 - SEP/RSEP
Multicoil Pickups w/ Output For Each Coil Pair Under a String
(applies to all cover styles)

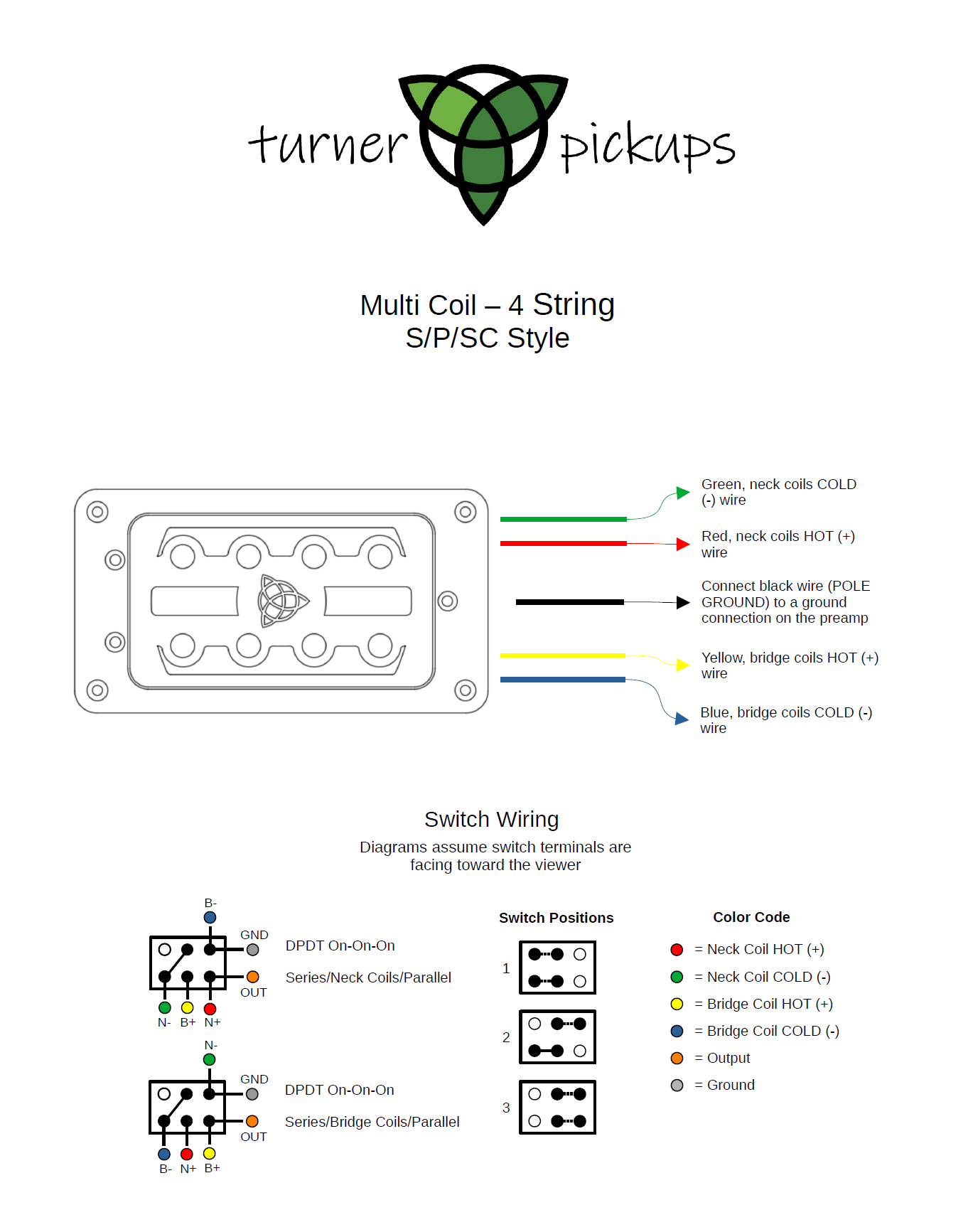

MC4/5 - SPSC
Multicoil Pickups w/ Two Leads for Each "Column" of Coils
(applies to all cover styles)

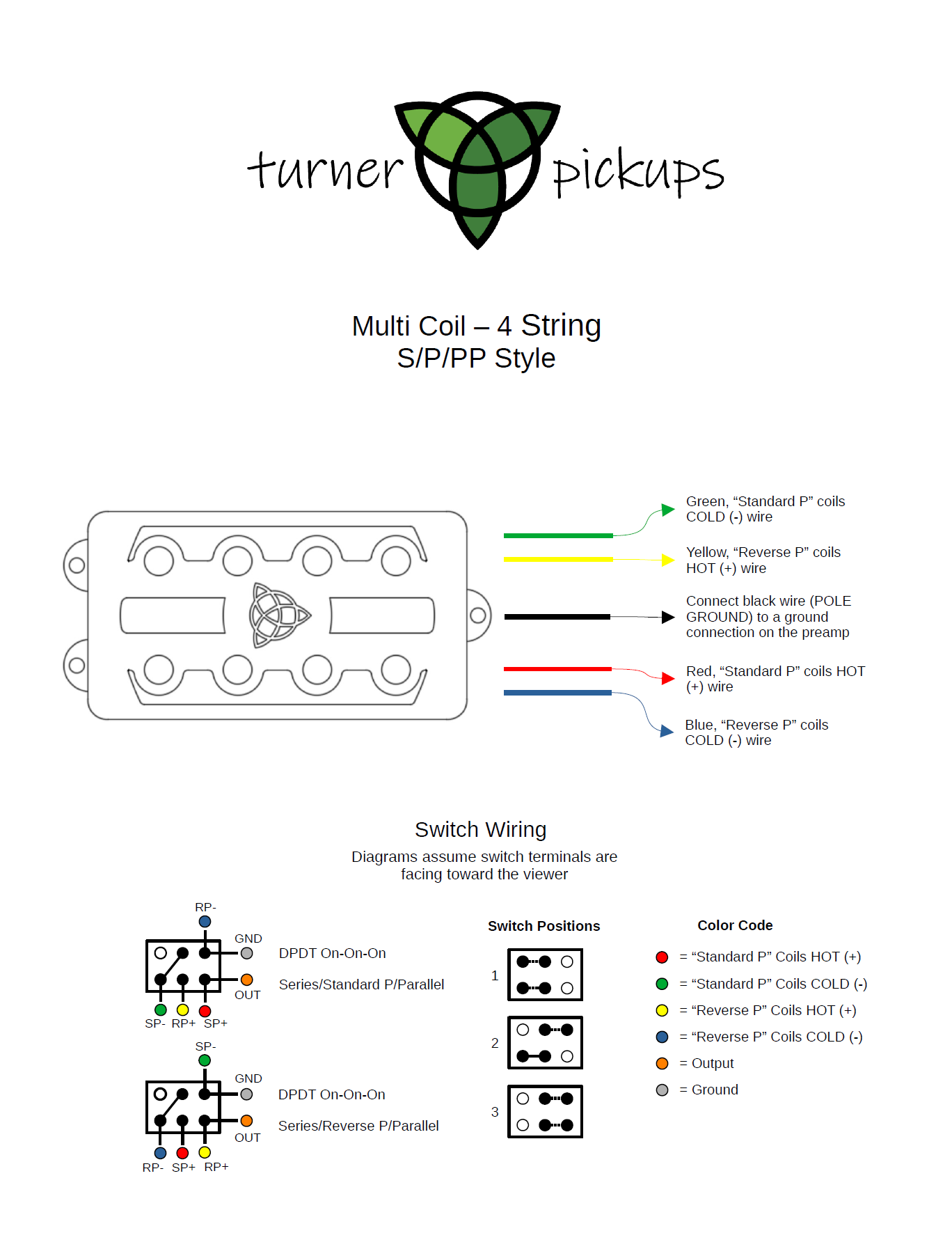

MC4/5 - SPPP
Multicoil Pickups w/ Two Leads for Each "P" Pickup Arrangement
"Standard" P = Neck-Side (B), E, A Coils w/ Bridge-Side D, G Coils |
"Reverse" P = Bridge-Side (B), E, A Coils w/ Neck-Side D, G Coils
(applies to all cover styles)

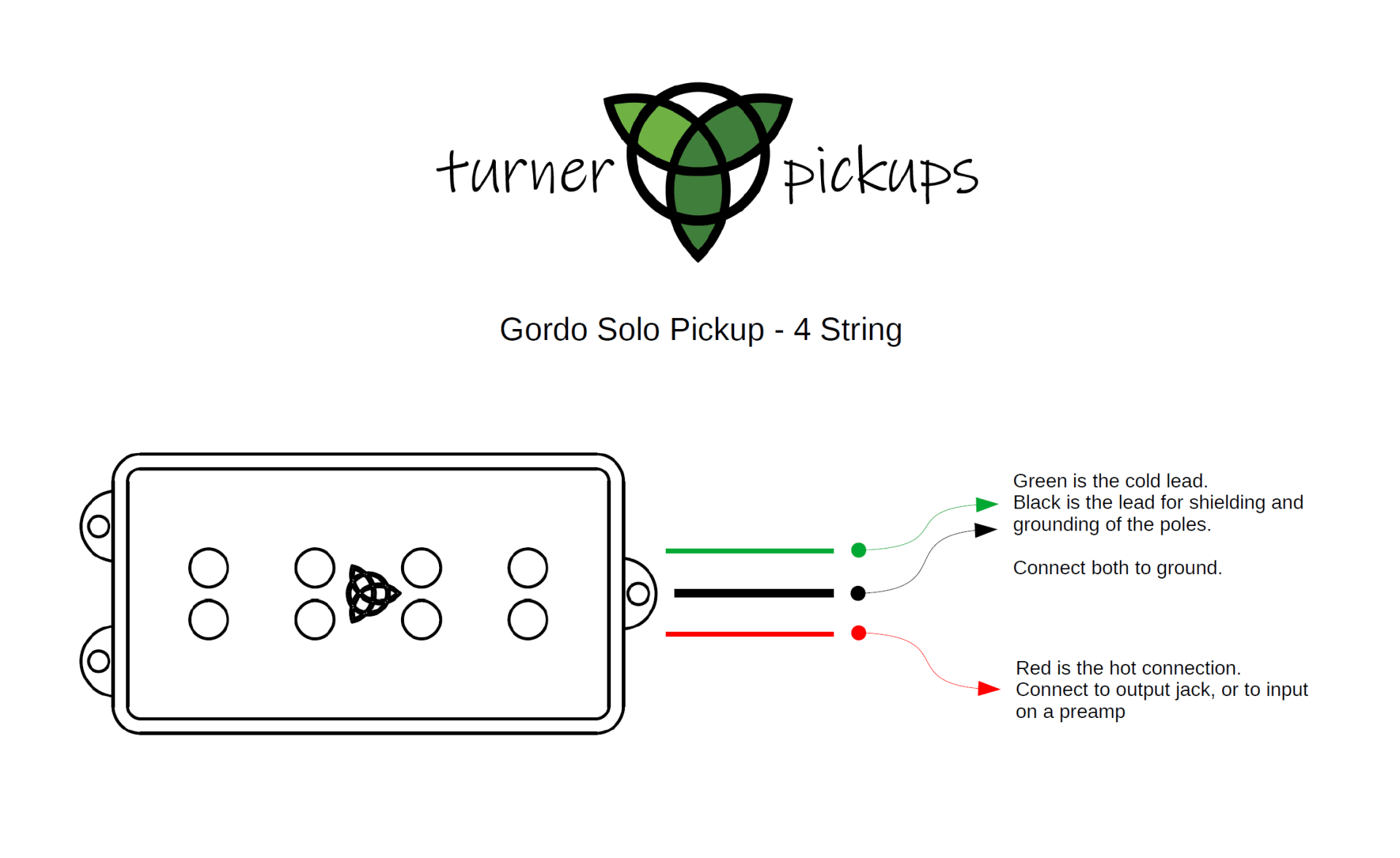

Gordo Solo 4
Wide Aperture Single Coil
